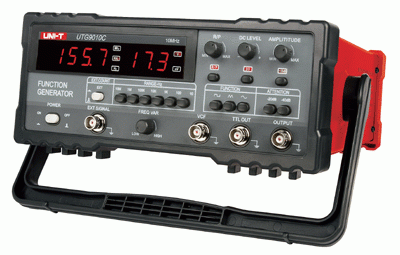

UNI-T UTG-9010C Function Generator
UNI-T UTG-9010C Function Generator
-
-
SPECIFICATIONS
| Feature |
UTG9010A |
| Waveforms |
Sine, Square, Triangle, Ramp up, Ramp down,
Exponential Rise, Exponential Fall |
| Sine |
| Range |
0.1Hz to 10MHz |
| Accuracy |
0.01Hz (≤3.05kHz), 1Hz (>3.05kHz) |
| Resolution |
0.01Hz or 8 digit |
| Stability |
<1ppm/℃ |
| Harmonic Distortion |
<-55dBc to 20kHz |
| <-50dBc to 1MHz |
| <-40dBc to 10MHz |
| <-30dBc to 20MHz |
| Square |
| Range |
0.1Hz to 5MHz |
| Accuracy |
0.01Hz (≤3.05kHz), 1Hz (>3.05kHz) |
| Resolution |
0.01Hz or 8 digit |
| Rise/Fall Time |
<20ns |
| Duty Cycle |
20% to 80% |
| Triangle, Ramp, sin(x)/x |
| Range |
0.1Hz to 1MHz |
| Accuracy |
0.01Hz (≤3.05kHz), 1Hz (>3.05kHz) |
| Resolution |
0.01Hz or 8 digit |
| Linearity |
<0.2% to 30kHz |
| Amplitude |
| Range |
0.5mVpp to 10Vpp (into 50Ω), 1mVpp to 20Vpp (into open circuit) |
| Accuracy |
± 5% |
| Resolution |
0.1mV |
| Output Impedance |
50Ω |
| Attenuator |
20dB + 40dB |
| DC Offset |
from -10V to +10V |
| EXT AM |
| Input Impedance |
1kΩ |
| Modulation Depth |
Controlled by the amplitude of extenal signal, 100% (5Vp-p input) |
| Frequency Counter |
| Frequency Range |
1Hz to 100MHz |
| Amplitude Range |
0.1Vp-p to 5Vp-p |
| Input Impedance |
10kΩ |
GENERAL CHARACTERISTICS
| Power |
AC 220V / 50Hz |
| Product Color |
Red and Grey |
| Product Net Weight |
3kgs |
| Product Size |
320mm x 240mm x 100mm |
| Standard Accessories |
BNC to BNC Cable, Power Cord, English Manual |
|
Description
-
-
SPECIFICATIONS
| Feature |
UTG9010C |
| Waveforms |
Sine, Square, Triangle, Ramp, Pulse, TTL |
| Amplitude |
| Range (no load) |
from 1mVpp to 20Vpp |
| Accuracy |
± 5% |
| Resolution |
0.1mV |
| Frequency |
| Range |
from 1Hz to 10MHz |
| Accuracy |
± 1% |
| Resolution |
1mHz |
| Output Power |
2Wp-p |
| Output Impendance |
50Ω |
| Attenuator |
20dB + 40dB |
| DC Offset |
from -10V to + 10V |
| Display |
Frequency: 4-digits-LED, Amplitude: 3-digits-LED |
| Duty Cycle |
from 10% to 90% |
| Distortion of Sine |
≤ 2% (at 1kHz) |
| Rise Time of Square |
≤ 35ns |
| VCF |
≥ 100 : 1 |
| Frequency Counter |
| Frequency Range |
from 0.2Hz to 10MHz |
| Amplitude Range |
from 0.5Vp-p to 5Vp-p |
| Input Impedance |
10kΩ |
GENERAL CHARACTERISTICS
| Power |
AC 220V / 50Hz |
| Product Color |
Red and Grey |
| Product Net Weight |
3kgs |
| Product Size |
320mm x 240mm x 100mm |
| Standard Accessories |
BNC to Alligator Clips Cable, Power Cord and English Manu |
|
