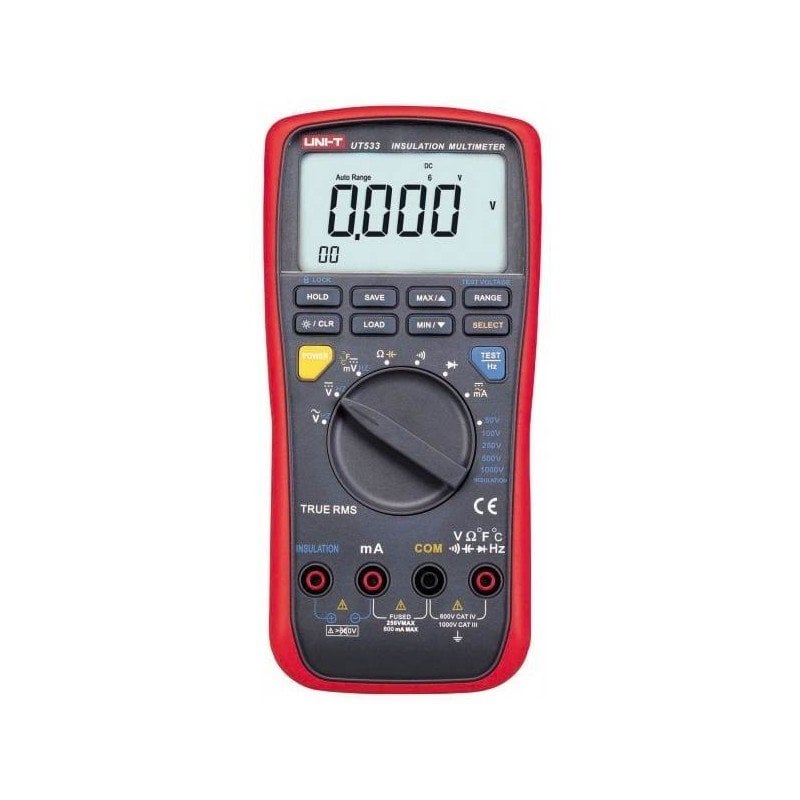

UNI-T UT533 İzolasyon Test Cihazı

Açıklama

• SPECIFICATIONS Basic Functions Range Best Accuracy Insulation Resistance Measurement 50V:   0.1MΩ ~ 50.0MΩ 100V:  0.1MΩ ~ 100.0MΩ ±(3%+5) ±(3%+5) 250V: 0.2MΩ ~ 99.9MΩ 100MΩ~250MΩ ±(3%+5) ±(3%+5) 500V: 0.5MΩ ~ 99.9MΩ 100MΩ~500MΩ ±(3%+5) ±(3%+5) 1000V: 4.0MΩ ~ 99.9MΩ 100MΩ~999MΩ ±(3%+5) ±(3%+5)           1.00GΩ ~ 2.00GΩ ±(5%+5) DC Voltage Measurement 60mV/600mV/6V/60V/600V/1000V ±(0.09%+6) AC Voltage Measurement 6V/60V/600V/1000V ±(1%+3) DC Current Measurement 60mA/600mA ±(1.0%+2) AC Current Measurement 60mA/600mA ±(1.5%+2) Resistance Measurement 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ ±(0.9%+2) Capacitance Measurement 10nF/100nF/1μF/10μF/100μF ±(3%+5) Frequency Measurement 60Hz/600Hz/6KHz/60KHz/600KHz/1MHz ±(0.1%+3) Temperature Testing -40°C ~ 537°C -40°F ~ 998 °F ±(1%+10) ±(1%+10) Special Functions Auto Ranging Diode Continuity Buzzer True RMS Data Hold Data Logging 99 Full Icon Display Display Backlight Max / Min Mode Memory Zeroing Sleep Mode Low Battery Display GENERAL CHARACTERISTICS Power 1.5V Battery× 6 LCD Size 81 × 46mm Product Color Red and Grey Product Net Weight 505g Product Size 97 × 203 × 46mm Standard Accessories Battery, Test Lead, English Manual, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
