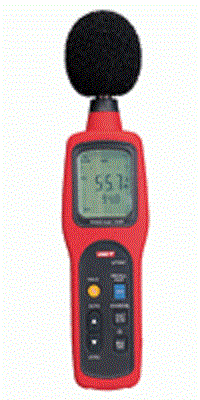

UNI-T UT352 Sound Level Meter

pr_01_196

UNI-T UT352 Sound Level Meter

SPECIFICATIONS

Measurement Functions UT352
Total Range 30 to 130dB
Maximum Level 130dB
Accuracy ±1.5dB
Range Selections 30 to 80dB, 50 to 100dB, 60 to 110dB, 80 to 130dB
Frequency Range 31.5Hz to 8000Hz
Frequency Weighting A and C
Time Weighting FAST (125ms)
SLOW (1 second)
Analogue Bar Graph 30~130dB
Warning Over-Range “OVER”, Under-Range “UNDER”
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600Ω
DC: 2Vrms full scale; 10mV/dB; Output impedance around 100Ω
Max/Min Mode
Data Hold
Display Backlight
Sleep Mode
Low Battery Display 4.8V
Data Logging 63 data sets

GENERAL CHARACTERISTICS

Power 1.5V Battery (AA) x 4
LCD Size 53 x 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273 x 70 x 39mm
Standard Accessories Batteries, English Manual
