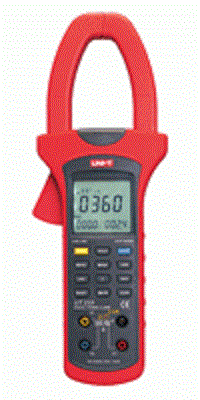

UNI-T UT223 Pensampermetre

UNI-T UT223 Pensampermetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
AC Voltage 15V/100V/300V/600V (1.2%+5)
AC Current 40A/100A/400A/1000A (2%+5)
Active Power 0.01kW-600kW (3%+5)
Apparent Power 0.01kVA-600kVA (3%+5)
Reactive Power 0.01kVAr-600kVAr (4%+5)
Power Factor 0.3~1(Capacitive or Inductive ) (0.02+2)
Phase Angle 0°C~360°C
Frequency 20Hz-500Hz
Active Energy 1~9999 kWh (3%+2)
Special Functions
Auto Ranging
Single-phase 2-wire
3-phase 3-wire
3-phase 4-wire
Phase Rotation Test
True RMS AC Voltage or Current
Calibration Feature
Data Logging 99
Data Recall
Max/Min Mode
Data Hold
USB
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for AC Voltage Measurement ≥10MW
Max. Display 9999

GENERAL CHARACTERISTICS

Power 1.5V Battery (LR6) x 4
LCD Size 46 x 42mm
Product Color Red and Grey
Product Net Weight 601g
Product Size 303 x 112 x 39mm
Standard Accessories 4pcs of Test Lead, Battery, English Manual, 4pcs of Alligator Clips, USB Interface Cable, Software, Tool Box
