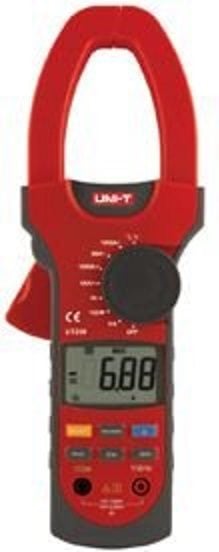

UNI-T UT208 Pensampermetre

UNI-T UT208 Pensampermetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 6.6V/66V/600V (0.8%+1)
AC Voltage 6.6V/66V/600V (1.2%+5)
DC Current 66A/1000A (1.5%+8)
AC Current 66A/1000A (2%+8)
Resistance 660W/6.6kW/66kW/660kW/
6.6MW/66MW
(1%+2)
Temperature -40°C~1000°C
-40°F~1832°F
(1%+3)
(1%+4)
Frequency 660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz
(0.1%+3)
Duty Cycle 0.1% ~ 99.9%
Special Functions
Auto Ranging
Diode
Continuity Buzzer
True RMS AC Voltage
Surge Current AC Current
Max/Min Mode
Data Hold
Sleep Mode
Display Backlight
Full Icon Display
Low Battery Display
Input Impedance for AC Voltage Measurement Around 10MW
Max. Display 6666

GENERAL CHARACTERISTICS

Power 9V Alkaline Battery (1604A or 6LF22)
LCD Size 47 x 30mm
Product Color Red and Grey
Product Net Weight 533g
Product Size 286 x 105 x 45mm
Standard Accessories Test Lead, Alkaline Battery, English Manual, Point Contact Temperature Probe, Tool Box

Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 6.6V/66V/600V (0.8%+1)
AC Voltage 6.6V/66V/600V (1.2%+5)
DC Current 66A/1000A (1.5%+8)
AC Current 66A/1000A (2%+8)
Resistance 660W/6.6kW/66kW/660kW/
6.6MW/66MW
(1%+2)
Temperature -40°C~1000°C
-40°F~1832°F
(1%+3)
(1%+4)
Frequency 660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz
(0.1%+3)
Duty Cycle 0.1% ~ 99.9%
Special Functions
Auto Ranging
Diode
Continuity Buzzer
True RMS AC Voltage
Surge Current AC Current
Max/Min Mode
Data Hold
Sleep Mode
Display Backlight
Full Icon Display
Low Battery Display
Input Impedance for AC Voltage Measurement Around 10MW
Max. Display 6666

GENERAL CHARACTERISTICS

Power 9V Alkaline Battery (1604A or 6LF22)
LCD Size 47 x 30mm
Product Color Red and Grey
Product Net Weight 533g
Product Size 286 x 105 x 45mm
Standard Accessories Test Lead, Alkaline Battery, English Manual, Point Contact Temperature Probe, Tool Box
