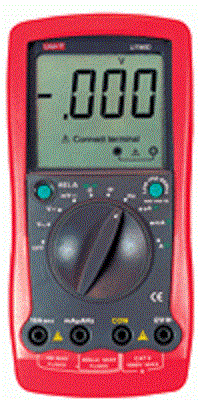

UNI-T UT-90D Dijital Multimetre

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Basic Functions	Range	Best Accuracy	DC Voltage	400mV/4V/40V/400V/1000V	(0.8%+1)
AC Voltage	4V/40V/400V/750V 400μA/4000μA/40mA/400mA/4A/10A	(1%+5)
DC Current	400μA/4000μA/40mA/400mA/4A/10A	(1%+2)
AC Current	400μA/4000μA/40mA/400mA/4A/10A	(1.2%+2)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	(1%+2)
Capacitance	40nF/400nF/4uF/40uF/100uF	(3%+5)
Frequency	10Hz-10MHz	(0.1%+3)
Special Functions
Special Functions			Low Impedance Selection
Fused 10A Range
mA Fuse		Resettable
Auto Ranging
Diode
Continuity Buzzer
Relative Mode
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MΩ
Max. Display	3999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	60 x 54mm
Product Colour	Red And Grey
Product Net Weight	340g
Product Size	179 × 88 × 39mm
Standard Accessories	Test lead, Batteries, English Manual, Holster
