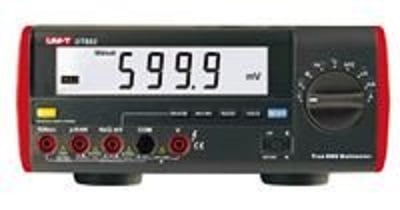

UNI-T UT-803 Masa Üstü Dijital Multimetre

UNI-T UT-803 Masa Üstü Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 600mV/6V/60V/600V/1000V (0.3%+2)
AC Voltage 600mV/6V/60V/600V/1000V (0.6%+5)
DC Current 600µA/6000µA/60mA/600mA/10A (0.5%+3)
AC Current 600µA/6000µA/60mA/600mA/10A (1%+5)
Resistance 600W/6kW/60kW/600kW/6MW/60MW (0.5%+2)
Capacitance 6nF/60nF/600nF/6µF/60µF/600µF/6mF (2%+5)
Temperature (oC) -40°C ~ 1000°C (1%+3)
Temperature (oF) -40°F ~ 1832°F (1.5%+5)
Frequency 6kHz/60kHz/600kHz/6MHz/60MHz (0.1%+3)
Special Functions
Fused 10A Range
Auto Ranging
Voltage & Current :
AC+DC Measurement
AC Voltage Frequency 100kHz True RMS
Diode
Continuity Buzzer
Transistor
Max/Min Mode
Data Hold
RS232C
USB
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
600mV Range Around 3GW
All Other Ranges: 10MW
Max. Display 5999

GENERAL CHARACTERISTICS

Power AC220V/50Hz or 1.5V Battery(R14) x 6
LCD Size 128 x 28mm
Product Colour Red and Grey
Product Net Weight 2.4kg
Product Size 310 x 240 x 105mm
Standard Accessories Test Lead, AC220V Power Cord,English Manual, Point Contact
Temperature Probe, Alligator Clip,Multi-Purpose Socket,
RS232C Interface Cable,USB Interface Cable, Software





Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 600mV/6V/60V/600V/1000V (0.3%+2)
AC Voltage 600mV/6V/60V/600V/1000V (0.6%+5)
DC Current 600µA/6000µA/60mA/600mA/10A (0.5%+3)
AC Current 600µA/6000µA/60mA/600mA/10A (1%+5)
Resistance 600W/6kW/60kW/600kW/6MW/60MW (0.5%+2)
Capacitance 6nF/60nF/600nF/6µF/60µF/600µF/6mF (2%+5)
Temperature (oC) -40°C ~ 1000°C (1%+3)
Temperature (oF) -40°F ~ 1832°F (1.5%+5)
Frequency 6kHz/60kHz/600kHz/6MHz/60MHz (0.1%+3)
Special Functions
Fused 10A Range
Auto Ranging
Voltage & Current :
AC+DC Measurement
AC Voltage Frequency 100kHz True RMS
Diode
Continuity Buzzer
Transistor
Max/Min Mode
Data Hold
RS232C
USB
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
600mV Range Around 3GW
All Other Ranges: 10MW
Max. Display 5999

GENERAL CHARACTERISTICS

Power AC220V/50Hz or 1.5V Battery(R14) x 6
LCD Size 128 x 28mm
Product Colour Red and Grey
Product Net Weight 2.4kg
Product Size 310 x 240 x 105mm
Standard Accessories Test Lead, AC220V Power Cord,English Manual, Point Contact
Temperature Probe, Alligator Clip,Multi-Purpose Socket,
RS232C Interface Cable,USB Interface Cable, Software
