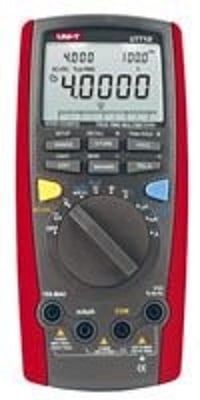

UNI-T UT-71D Dijital Multimetre

UNI-T UT-71D Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
AC Voltage 4V/40V/400V/1000V (0.4%+30)
AC Bandwidth 100KHz
DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
Temperature (°C) -40°C ~ 1000°C (1%+30)
Temperature (°F) -40°F ~ 1832°F (1.5%+50)
Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+8)
Duty Cycle 10%~90% (1%+30)
4~20mA Loop 0~100% (1%+50)
Power Measurement
Special Functions ?/font> ?/font>
Fused 10A Range ?nbsp;
Auto Ranging ?nbsp;
Current Measurement Alarm ?nbsp;
Function Set Up ?nbsp;
Auto Ranging
Votage & Current :
AC + DC Measurement
?nbsp;
Data Logging ?nbsp; 9999
Data Recall ?nbsp;
Diode ?nbsp;
Continuity Buzzer ?nbsp;
True RMS ?nbsp;
Peak Hold ?nbsp;
Max/Min Mode ?nbsp;
Relative Mode ?nbsp;
Data Hold ?nbsp;
USB ?nbsp;
Double Display Backlight ?nbsp;
Full Icon Display ?nbsp;
Sleep Mode ?nbsp;
Low Battery Display ?nbsp;
Input Impedance for
DC Voltage Measurement
DC 200mV : Around 2.5GW
All Other Ranges : 10MW
Max. Display 40000
Analogue Bar Graph ?nbsp;

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 73 x 50 mm
Product Colour Red and Grey
Product Net Weight 384g
Product Size 200 x 93 x 40mm
Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip



Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
AC Voltage 4V/40V/400V/1000V (0.4%+30)
AC Bandwidth 100KHz
DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
Temperature (°C) -40°C ~ 1000°C (1%+30)
Temperature (°F) -40°F ~ 1832°F (1.5%+50)
Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+8)
Duty Cycle 10%~90% (1%+30)
4~20mA Loop 0~100% (1%+50)
Power Measurement
Special Functions ?/font> ?/font>
Fused 10A Range ?nbsp;
Auto Ranging ?nbsp;
Current Measurement Alarm ?nbsp;
Function Set Up ?nbsp;
Auto Ranging
Votage & Current :
AC + DC Measurement
?nbsp;
Data Logging ?nbsp; 9999
Data Recall ?nbsp;
Diode ?nbsp;
Continuity Buzzer ?nbsp;
True RMS ?nbsp;
Peak Hold ?nbsp;
Max/Min Mode ?nbsp;
Relative Mode ?nbsp;
Data Hold ?nbsp;
USB ?nbsp;
Double Display Backlight ?nbsp;
Full Icon Display ?nbsp;
Sleep Mode ?nbsp;
Low Battery Display ?nbsp;
Input Impedance for
DC Voltage Measurement
DC 200mV : Around 2.5GW
All Other Ranges : 10MW
Max. Display 40000
Analogue Bar Graph ?nbsp;

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 73 x 50 mm
Product Colour Red and Grey
Product Net Weight 384g
Product Size 200 x 93 x 40mm
Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
