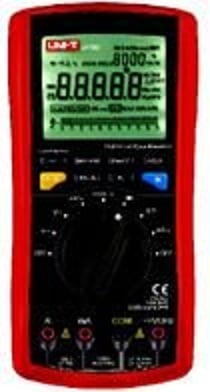

UNI-T UT-70D Digital Multimeter

pr_01_173

UNI-T UT-70D Digital Multimeter

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 80mV/800mV/8V/80V/800V/1000V (0.05%+10)
AC Voltage 800mV/8V/80V/800V/1000V (0.8%+20)
DC Current 80mA/800mA/8A/10A (0.2%+40)
AC Current 80mA/800mA/8A/10A (0.5%+40)
Resistance 800W/8kW/80kW/800kW/8MW/80MW (0.3%+40)
Conductance 80nS (2%+120)
Capacitance 1nF/10nF/100nF/1mF/10mF/100mF (2%+3)
Frequency 1kHz/10kHz/100kHz/1MHz (0.02%+1)
Duty Cycle 1%~99.9%
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
True RMS AC
Peak/Min/Max
Max/Min/Avg
Relative Mode
Auto Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 10MW
Max Display 79999 (frequency measurement counts 99999)
Analog Bar Graph

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 62 x 53mm
Product Colour UT70D-Grey, Holster – Red
Product Net Weight 600g (including holster)
Product Size 195 x 90 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Test Clip, RS232C Interface Cable, Software, Holster



SKU: UT70D Categories: , , Tags: , , ,

Description

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 80mV/800mV/8V/80V/800V/1000V (0.05%+10)
AC Voltage 800mV/8V/80V/800V/1000V (0.8%+20)
DC Current 80mA/800mA/8A/10A (0.2%+40)
AC Current 80mA/800mA/8A/10A (0.5%+40)
Resistance 800W/8kW/80kW/800kW/8MW/80MW (0.3%+40)
Conductance 80nS (2%+120)
Capacitance 1nF/10nF/100nF/1mF/10mF/100mF (2%+3)
Frequency 1kHz/10kHz/100kHz/1MHz (0.02%+1)
Duty Cycle 1%~99.9%
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
True RMS AC
Peak/Min/Max
Max/Min/Avg
Relative Mode
Auto Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 10MW
Max Display 79999 (frequency measurement counts 99999)
Analog Bar Graph

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 62 x 53mm
Product Colour UT70D-Grey, Holster – Red
Product Net Weight 600g (including holster)
Product Size 195 x 90 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Test Clip, RS232C Interface Cable, Software, Holster
