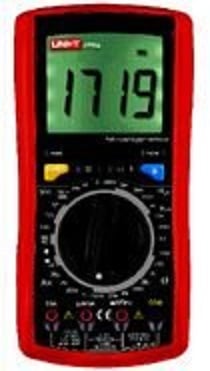

UNI-T UT-70A Digital Multimeter

pr_01_170

UNI-T UT-70A Digital Multimeter

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.5%+1)
AC Voltage 200mV/2V/20V/200V/750V (0.8%+3)
DC Current 20mA/2mA/200mA/10A (0.8%+1)
AC Current 20mA/2mA/200mA/10A (1%+3)
Resistance 200W/2kW/20kW/200kW/2MW/20MW/2000MW (0.8%+1)
Capacitance 20nF/200nF/ 2mF/100mF (2.5%+5)
Temperture(°C) -40°C~1000°C (1%+3)
Temperture(°F) -40°F~1832°F (1%+4)
Frequency 2kHz -10MHz(Auto Ranging) (0.1%+3)
Inductance 2mH/20mH/200mH/20H (2%+10)
Logic TTL (High > 2.0V, Low < 0.8)
Special Functions
Fused 10A Range
Diode
Continuity Buzzer
Transistor
Peak Hold
Data Hold
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Max. Display 1999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 62 x 53mm
Product Colour UT70A – Grey, Holster – Red
Product Net Weight 620g (including holster)
Product Size 195 x 90 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster



SKU: UT70A Categories: , , Tags: , , ,

Description

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.5%+1)
AC Voltage 200mV/2V/20V/200V/750V (0.8%+3)
DC Current 20mA/2mA/200mA/10A (0.8%+1)
AC Current 20mA/2mA/200mA/10A (1%+3)
Resistance 200W/2kW/20kW/200kW/2MW/20MW/2000MW (0.8%+1)
Capacitance 20nF/200nF/ 2mF/100mF (2.5%+5)
Temperture(°C) -40°C~1000°C (1%+3)
Temperture(°F) -40°F~1832°F (1%+4)
Frequency 2kHz -10MHz(Auto Ranging) (0.1%+3)
Inductance 2mH/20mH/200mH/20H (2%+10)
Logic TTL (High > 2.0V, Low < 0.8)
Special Functions
Fused 10A Range
Diode
Continuity Buzzer
Transistor
Peak Hold
Data Hold
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Max. Display 1999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 62 x 53mm
Product Colour UT70A – Grey, Holster – Red
Product Net Weight 620g (including holster)
Product Size 195 x 90 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster
