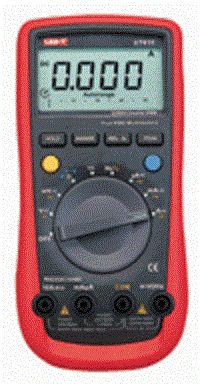

UNI-T UT-61E Dijital Multimetre

pr_01_169

UNI-T UT-61E Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 220mV/2.2V22V220V/1000V (0.1%+2)
AC Voltage 220mV/2.2V/22V/220V/750V (0.8%+10)
AC Current 220mA/2200mA/22mA/220mA/2.2A/10A (0.8%+10)
DC Current 220mA/2200mA/22mA/220mA/2.2A/10A (0.5%+10)
Resistance 220W/2.2KW/22kW/220kW/2.2MW/22MW/220MW (0.5%+10)
Capacitance 22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF (3.0%+5)
Frequency 10Hz-220MHz (0.01%+5)
Frequency Response 0 45Hz~10kHz
Duty Cycle 0.1%~99.9%
Special Functions
Auto/Manual Ranging
Diode
RMS
Continuity Buzzer
Data Hold
Peak Value
Display Backlight
REL
Sleep Mode Around 15 Minutes
Analogue Bar Graph 46
RS232
Input Protection
Input Impedance for DC Voltage Measurement Around 10MW
Low Battery Display ≤7.5V
Max Display 22000

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 65 x 43mm
Product Colour Red and Grey
Product Net Weight 370g
Product Size 180 x 87 x 47mm
Standard Accessories Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable,Software
Optional Accessories* USB Interface Cable
Stok kodu: UT61E Kategoriler: , , Etiketler: , , ,

Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 220mV/2.2V22V220V/1000V (0.1%+2)
AC Voltage 220mV/2.2V/22V/220V/750V (0.8%+10)
AC Current 220mA/2200mA/22mA/220mA/2.2A/10A (0.8%+10)
DC Current 220mA/2200mA/22mA/220mA/2.2A/10A (0.5%+10)
Resistance 220W/2.2KW/22kW/220kW/2.2MW/22MW/220MW (0.5%+10)
Capacitance 22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF (3.0%+5)
Frequency 10Hz-220MHz (0.01%+5)
Frequency Response 0 45Hz~10kHz
Duty Cycle 0.1%~99.9%
Special Functions
Auto/Manual Ranging
Diode
RMS
Continuity Buzzer
Data Hold
Peak Value
Display Backlight
REL
Sleep Mode Around 15 Minutes
Analogue Bar Graph 46
RS232
Input Protection
Input Impedance for DC Voltage Measurement Around 10MW
Low Battery Display ≤7.5V
Max Display 22000

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 65 x 43mm
Product Colour Red and Grey
Product Net Weight 370g
Product Size 180 x 87 x 47mm
Standard Accessories Battery, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable,Software
Optional Accessories* USB Interface Cable
