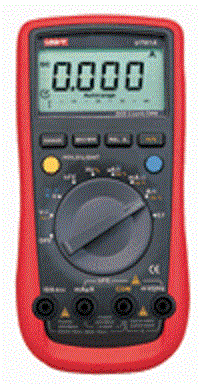

UNI-T UT-61A Dijital Multimetre

pr_01_165

UNI-T UT-61A Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.5%+1)
AC Voltage 400mV/4V/40V/400V/750V (1.0%+3)
AC Current 400mA/4000mA/40mA/400mA/4A/10A (1.2%+5)
DC Current 400mA/4000mA/40mA/400mA/4A/10A (1.0%+2)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1.0%+2)
Capacitance 40nF/400nF/4mF/40mF400mF/4000mF (3.0%+5)
Frequency 10Hz-10MHz (0.1%+4)
Frequency Response 0 45~400Hz
Duty Cycle 0.1%~99.9%
Special Functions
Auto/Manual Ranging
Diode
EF Function
Audion
Continuity Buzzer
Data Hold
Max/Min Mode
Display Backlight
REL
Analogue Bar Graph 41
Input Protection
Input Impedance for DC Voltage Measurement Around 10MW
Low Battery Display ≤7.5V
Max Display 4000

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 65 x 43mm
Product Colour Red and Grey
Product Net Weight 370g
Product Size 180 x 87 x 47mm
Standard Accessories Battery, Test Lead, English Manual, Multi-Purpose Socket
Optional Accessories* USB Interface Cable
