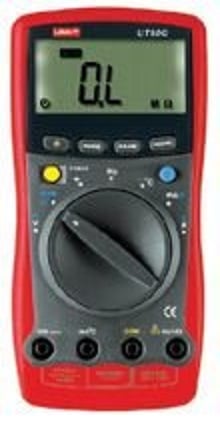

UNI-T UT-60G Dijital Multimetre

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Basic Functions	Range	Best Accuracy	DC Voltage	600mV/6V/60V/600V/1000V	(0.5%+3)
AC Voltage	600mV/6V/60V/600V/1000V	(1%+2)
DC Current	60mA/600mA/10A	(1.2%+3)
AC Current	60mA/600mA/10A	(2%+5)
Resistance	600W/6kW/60kW/600kW/6MW/60MW	(1%+2)
Capacitance	6nF/60nF/600nF/6mF/60mF/600mF/6mF	(4%+3)
Temperature (^oC)	-40^oC ~ 1000^oC	(1%+3)
Frequency	6kHz/60kHz/600kHz/6MHz/60MHz	(0.05%+3)
Special Functions
Special Functions			Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MW
Max. Display	5999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	63 x 31mm
Product Colour	Red and Grey
Product Net Weight	Around 312g
Product Size	177 x 73.5 x 35mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software

Açıklama

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Basic Functions	Range	Best Accuracy	DC Voltage	600mV/6V/60V/600V/1000V	(0.5%+3)
AC Voltage	600mV/6V/60V/600V/1000V	(1%+2)
DC Current	60mA/600mA/10A	(1.2%+3)
AC Current	60mA/600mA/10A	(2%+5)
Resistance	600W/6kW/60kW/600kW/6MW/60MW	(1%+2)
Capacitance	6nF/60nF/600nF/6mF/60mF/600mF/6mF	(4%+3)
Temperature (^oC)	-40^oC ~ 1000^oC	(1%+3)
Frequency	6kHz/60kHz/600kHz/6MHz/60MHz	(0.05%+3)
Special Functions
Special Functions			Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MW
Max. Display	5999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	63 x 31mm
Product Colour	Red and Grey
Product Net Weight	Around 312g
Product Size	177 x 73.5 x 35mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software
