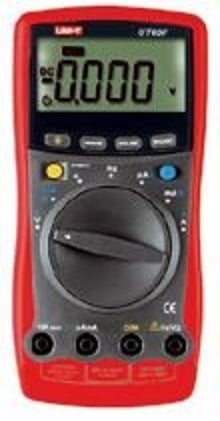

UNI-T UT-60F Dijital Multimetre

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Basic Functions	Range	Best Accuracy	DC Voltage	400mV/4V/40V/400V/1000V	(0.5%+3)
AC Voltage	400mV/4V/40V/400V/1000V	(1%+2)
DC Current	400mA/4000mA/40mA/400mA/10A	(1%+2)
AC Current	400mA/4000mA/40mA/400mA/10A	(1.5%+5)
Resistance	400W/4kW/40kW/400kW/4MW/40MW	(1%+2)
Capacitance	4nF/40nF/400nF/4mF/40mF/400mF/4mF	(4%+3)
Frequency	4kHz/40kHz/400kHz/4MHz/40MHz	(0.05%+3)
Special Functions
Special Functions			Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MW
Max. Display	3999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	63 x 31mm
Product Colour	Red and Grey
Product Net Weight	Around 312g
Product Size	177 x 73.5 x 35mm
Standard Accessories	Test Lead, Battery, English Manual, Test Clip RS232C Interface Cable, Software
