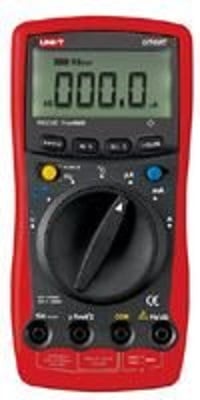

UNI-T UT-60E Dijital Multimetre

UNI-T UT-60E Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.8%+1)
AC Voltage 4V/40V/400V/750V (1%+5)
DC Current 400mA/4000mA/40mA/400mA/4A/10A (1%+2)
AC Current 400mA/4000mA/40mA/400mA/4A/10A (1.5%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 40nF/400nF/4mF/40mF/100mF (3%+5)
Temperature (oC) -40oC ~ 1000oC (1%+3)
Frequency 10Hz-10MHz (0.1%+3)
Duty Cycle 0.1%~99.9%
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
True RMS AC
Relative Mode
Data Hold
RS232C
Display Backlight
Full Icon Display
Low Battery Display
Input Impedance for DC
Voltage Measurement
Around 10MW
Max Display 3999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 63 x 31mm
Product Colour Red and Grey
Product Net Weight 320g
Product Size 177 x 85 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software

Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.8%+1)
AC Voltage 4V/40V/400V/750V (1%+5)
DC Current 400mA/4000mA/40mA/400mA/4A/10A (1%+2)
AC Current 400mA/4000mA/40mA/400mA/4A/10A (1.5%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 40nF/400nF/4mF/40mF/100mF (3%+5)
Temperature (oC) -40oC ~ 1000oC (1%+3)
Frequency 10Hz-10MHz (0.1%+3)
Duty Cycle 0.1%~99.9%
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
True RMS AC
Relative Mode
Data Hold
RS232C
Display Backlight
Full Icon Display
Low Battery Display
Input Impedance for DC
Voltage Measurement
Around 10MW
Max Display 3999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 63 x 31mm
Product Colour Red and Grey
Product Net Weight 320g
Product Size 177 x 85 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software
