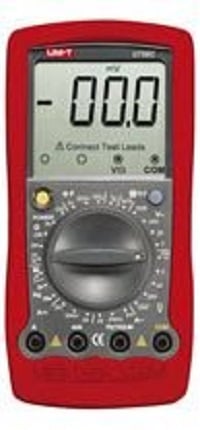

UNI-T UT-58C Dijital Multimetre

pr_01_157

UNI-T UT-58C Dijital Multimetre

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.5%+1)
AC Voltage 2V/20V/200V/750V (0.8%+3)
DC Current 2mA/200mA/20A (0.8%+1)
AC Current 2mA/200mA/20A (1%+3)
Resistance 200W/2kW/20kW/2MW/20MW (0.8%+1)
Capacitance 2nF/200nF/100mF (4%+3)
Temperature(°C) -40°C ~ 1000°C (1%+3)
Frequency 2kHz/20kHz (1.5%+5)
Special Functions
Diode
Continuity Buzzer
Transistor
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC
Voltage Measurement		 Around 10MW
Max Display 1999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 60 x 54mm
Product Colour Grey Holster – Red
Product Net Weight 350g (including holster)
Product Size 179 x 88 x 39mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Multi-Purpose Socket,
Stok kodu: UT58C Kategoriler: , , Etiketler: , , ,

Açıklama

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.5%+1)
AC Voltage 2V/20V/200V/750V (0.8%+3)
DC Current 2mA/200mA/20A (0.8%+1)
AC Current 2mA/200mA/20A (1%+3)
Resistance 200W/2kW/20kW/2MW/20MW (0.8%+1)
Capacitance 2nF/200nF/100mF (4%+3)
Temperature(°C) -40°C ~ 1000°C (1%+3)
Frequency 2kHz/20kHz (1.5%+5)
Special Functions
Diode
Continuity Buzzer
Transistor
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC
Voltage Measurement		 Around 10MW
Max Display 1999

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 60 x 54mm
Product Colour Grey Holster – Red
Product Net Weight 350g (including holster)
Product Size 179 x 88 x 39mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Multi-Purpose Socket,
