TT TECHNIC VC-9808+ LCR Metre

TT TECHNIC VC-9808+ LCR Metre

  • Ürün Detayları

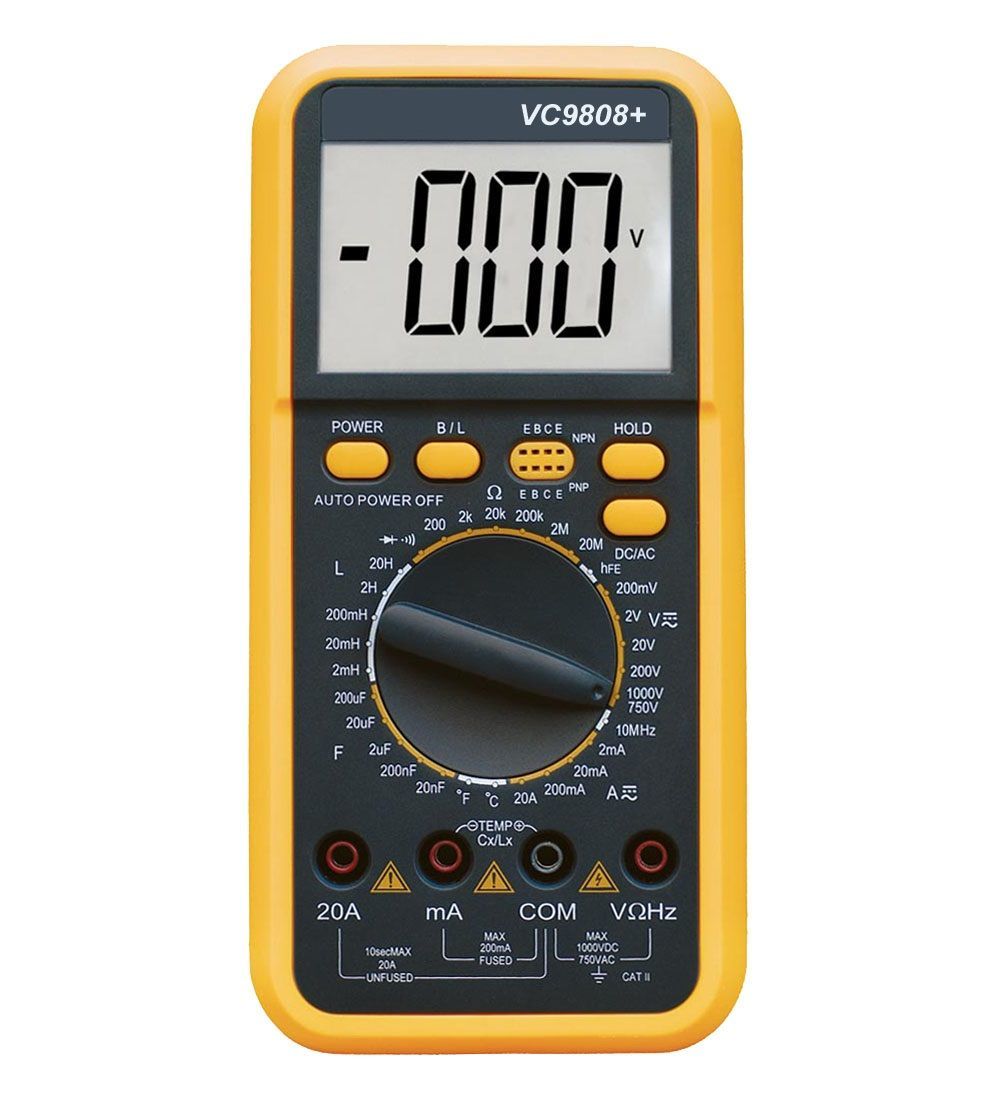

    VC9808+  3 1/2 Digital Multimeter

    ·New type holster, streamline design.
    ·Large LCD makes the reading clearly.
    ·Metallic screen board with stronger antimagnetic and anti-interferential function.
    ·No power off under natural operation.
    ·Full function protection, anti-high voltage circuit design.
    ·New type battery case design, it’s easy to change battery.



    Basic Function Range Accuracy
    DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3)
    AC Voltage 200mV/2V/20V/200V/750V ±(0.8%+5)
    DC Current 2mA/20mA/200mA/20A ±(0.8%+10)
    AC Current 2mA/20mA/200mA/20A ±(1.0%+15)
    Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
    200/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ ±(0.8%+3)
    Inductance 2mH/20mH/200mH/2H/20H ±(2.5%+30)
    Capacitance 20nF/200nF/2uF/20uF/200uF ±(2.5%+20)
    Frequency 200kHz
    2kHz/20kHz/200kHz/2000kHz/10MHz ±(1.0%+10)
    Celsius (-40~1000)℃ ±(1.0%+5)
    Fahrenheit (0~1832)℉



    Special Function

    Diode √
    Transistor test √
    Continuity buzzer √
    Low battery indication √
    Hold
    Peak hold
    Auto power off √
    Backlight √
    Function protection √
    Shockproof protection √
    Input impedance 10МΩ
    Sampling rate 3 times/s
    AC Frequency response 40~400Hz
    Operation way Manual range
    Max. Display 1999
    LCD size 70×50mm
    Battery 9V (6F22)
    Product color Case: dark gray; Holster color:yellow
    Product Net Weight Approx:320g
    Product Dimension 190×88.5×27.5mm

    Standard Accessories
    Test leads,battery,instruction manual,TP01
    temperature probe(with temperature function)
