Model SDS7102
Bandwidth 100MHz
Sample rate 1GS/s
Horizontal Scale(S/div) 5ns/div~100s/div, step by1~2~5 2ns/div~100s/div, step by1~2~5 1ns/div~100s/div, step by1~2~5
Rise time ≤5.8ns ≤3.5ns ≤1.7ns ≤1.17ns

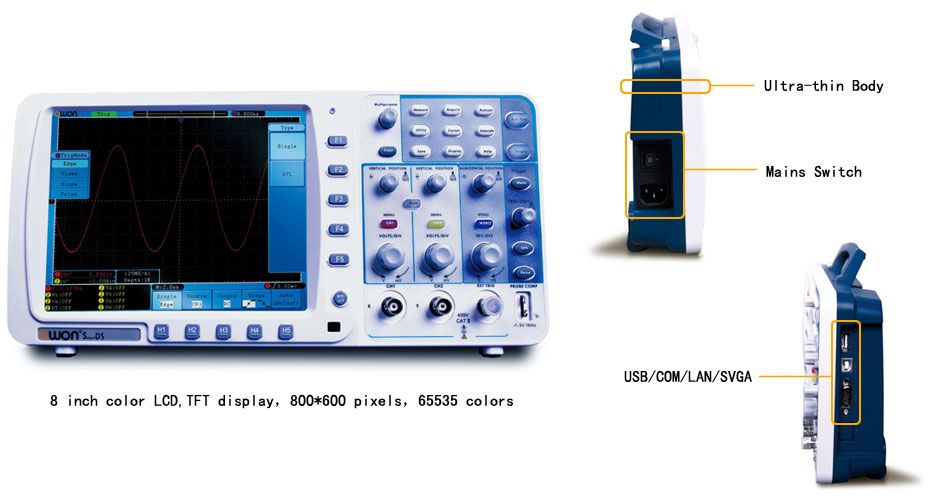

Display 8” Colored LCD, 800×600 pixels, 65535 colors
Channel 2  +  1  (External)
Record length Max 10M
Input coupling DC,  AC ,  Ground
Input impedance 1MΩ±2%, in parallel with 10pF±5pF
Channels Isolation 50MHz: 100 : 1, 10MHz: 40 : 1
Max. input voltage 400V (PK-PK) (DC + AC PK-PK)
DC gain accuracy ±3%
DC accuracy Average﹥16: ±(3% rdg + 0.05 div) for △V
Probe attenuation factor 1X, 10X, 100X, 1000X
LF respond(AC, -3dB) ≥5Hz (at input, AC coupling, -3dB)
Sampling rate / relay time accuracy ±100ppm
Interpolation (sin x)/x
Interval(△T) accuracy(full bandwidth) Single:±(1 interval time+100ppm×reading+0.6ns);Average>16:±(1 interval time +100ppm×reading+0.4ns)
Vertical resolution(A/D) 8 bits resolution (2 Channels simultaneously)
vertical sensitivity 2mV/div~10V/div
Trigger type Edge, Pulse, Video, Slope, Alternate
Trigger mode Auto, Normal, Single
Trigger Level ±6 Divisions from screen center
Acquisition modes Sample, Peak Detect and Average
Line/field frequency(Video) Support standard NTSC, PAL and SECAM broadcast systems
Cursor Measurement △V and △T between cursors
Automatic Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B↑ , Delay A→B↓ , +Width, -Width, +Duty, -Duty
Waveform Math  +, -, *, / ,FFT
Waveform storage 15 waveforms
Lissajous figure Bandwidth Full bandwidth
Phase difference  ±3 degrees
Communication interface USB, USB flash disk storage, Pass/Fail, LAN, VGA / COM (optional)
Cymometer Available
Power supply 100V-240V AC, 50/60HZ,CAT Ⅱ
Power consunption < 18W
Fuse 2A, T class, 250V
