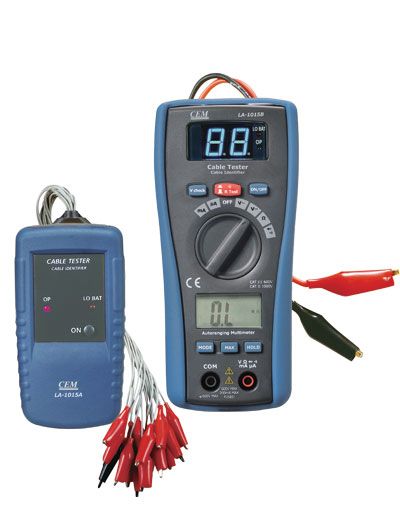

CEM LA1015 Kablo Takip Cihazı

Ana Sayfa » Ürünler » Test ve Ölçü Aletleri » CEM LA1015 Kablo Takip Cihazı

pr_01_317

CEM LA1015 Kablo Takip Cihazı

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Output Voltage	250V/500V/1000V	±10%
Niminal Current	250V/500V 1mA 500V/1000V 1mA 1000V/2500V 1mA	±10% ±10% ±10%
Short Circuit Current	<2mA
Insulation Resistance Measurement	250V: 3MW ~ 2000MW 500V: 3MW ~ 2000MW 1000V: 3MW ~ 2GW	±3%+5 ±3%+5 ±3%+5
Voltage Measurement	1000V DC 750V AC	±(2%+3) ±(2%+3)
Special Functions
Auto Ranging
Low Battery Display
Alarm Light Display
Display Backlight
Alarm Buzzer

GENERAL CHARACTERISTICS

Power	1.5V Alkaline Battery x 6
LCD Size	70.6 mm x 34 mm
Product Color	Red & Grey
Product Net Weight	500g
Product Size	150 x 100 x 71 mm
Standard Accessories	Battery, Probe, Alligator Clip, Test Lead,English Manual, Carrying Bag, Gallus

Stok kodu: LA1015 Kategoriler: Kablo Takip Cihazları, Test ve Ölçü Aletleri, Ürünler Etiketler: cable tracking device, kablo takip cihazı

Açıklama
İnceleme (0)

Açıklama

Specifications:

Function	Max Range	Basic Accuracy
Voltage DC	600V	±0.5%
Voltage AC	600V	±1.2%
Current DC	200mA	±1.5%
Current AC	200mA	±2.0%
Resistance	20MΩ	±0.8%
Continuity Test	Beep if less than 100Ω
Transmitter
Display	Two blue LED lamps
Alligators	17 Croc Clips – Red x 16, Black x 1
Cable resistance	10K Ohm max
Receiver
Display	Two digit Red LED Display
Alligators	2 Croc Clips – Red x 1, Black x 1
Size(HxWxD)	162mm x 74.5mm x 44mm
Weight	308g
