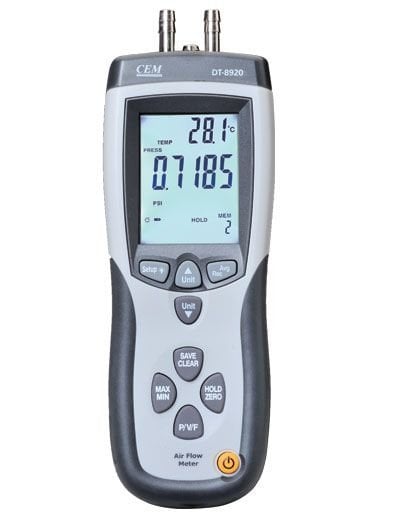

CEM DT8920 Basınç Ölçer

CEM DT8920 Basınç Ölçer

  • Specifications:

    Manometer
    Accuracy ±0.3%FSO ( 25°C)
    Repeatability ±0.2% (Max.±0.5% FSO)
    Linearity/Hysteresis ±0.29% FSO
    Pressure  Range ±5000Pa
    Maximum Pressure 10psi
    Response Time 0.5 Seconds typical
    Over range Indicator OL
    Under range Indicator -OL
    Units Range Resolution
    PSI 0.7252 0.0001
    mbar 50.00 0.01
    inH2O 20.07 0.01
    mmH2O 509.8 0.1
    Pa 5000 1
    Air Velocity
    Range Resolution Accuracy
    m/s(meter per second) 1-80.000 0.001 ±2.5% of reading at 10.00m/s
    ft/min(feet per minute) 200-15733 1 Accuracy is function of velocity

    and duct size



    km/h(kilometers per hour) 3.5-288.0 0.1
    MPH(miles per hour) 2.25-178.66 0.01
    Knots(nautical miles per hour) 2.0-154.6 0.1
    Air Flow
    Range Resolution
    CFM 0 -99.999ft3/min 0.0001 to 100
    CMM 0 -99.999m3/min 0.001 to 100
    Temperature
    Range Resolution Accuracy
    °C 0 to  50.0°C 0.1 ± 1.0°C
    °F 32.0 to  122.0°F 0.1 ± 2.0°F

Açıklama

  • Specifications:

    Manometer
    Accuracy ±0.3%FSO ( 25°C)
    Repeatability ±0.2% (Max.±0.5% FSO)
    Linearity/Hysteresis ±0.29% FSO
    Pressure  Range ±5000Pa
    Maximum Pressure 10psi
    Response Time 0.5 Seconds typical
    Over range Indicator OL
    Under range Indicator -OL
    Units Range Resolution
    PSI 0.7252 0.0001
    mbar 50.00 0.01
    inH2O 20.07 0.01
    mmH2O 509.8 0.1
    Pa 5000 1
    Air Velocity
    Range Resolution Accuracy
    m/s(meter per second) 1-80.000 0.001 ±2.5% of reading at 10.00m/s
    ft/min(feet per minute) 200-15733 1 Accuracy is function of velocity

    and duct size



    km/h(kilometers per hour) 3.5-288.0 0.1
    MPH(miles per hour) 2.25-178.66 0.01
    Knots(nautical miles per hour) 2.0-154.6 0.1
    Air Flow
    Range Resolution
    CFM 0 -99.999ft3/min 0.0001 to 100
    CMM 0 -99.999m3/min 0.001 to 100
    Temperature
    Range Resolution Accuracy
    °C 0 to  50.0°C 0.1 ± 1.0°C
    °F 32.0 to  122.0°F 0.1 ± 2.0°F
