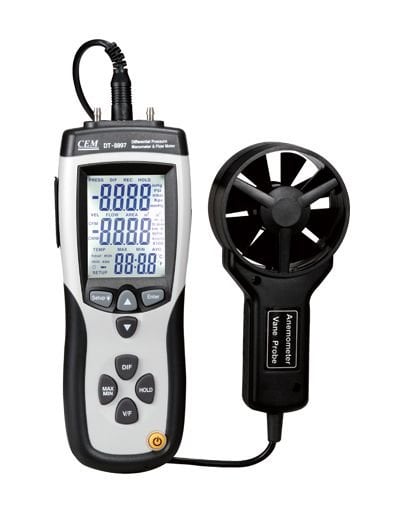

CEM DT8897 Çok İşlevli Çevresel Ölçüm Cihazı

CEM DT8897 Çok İşlevli Çevresel Ölçüm Cihazı

  • Specifications (Manometer):



    Accuracy ±0.3%FSO
    Repeatability ±0.2% (Max.+/ -0.5% FSO)
    Linearity/Hysteresis ±0.29% FSO
    Pressure  Range ±2psi (±55.40 inH2O)
      Units Range/Resolution
    Units and Resolution psi 2.000/0.001
    mbar 137.8/0.1
    kPa 13.78/0.01
    inHg 4.072/0.001
    mmHg 103.4/0.1



    Specifications (Flow)



    Air  Velocity Range Resolution Accuracy
    m/s(meter per second) 0.40~30.00 0.01 ±3% ± 0.20m/s
    ft/min(feet per minute) 80~5900 1 ±3% ± 40ft/min
    km/h(kilometers per hour) 1.4~108.0 0.1 ±3% ± 0.8km/h
    MPH(miles per hour) 0.9~67.0 0.1 ±3% ± 0.4MPH
    Knots(nautical miles per hour) 0.8~58.0 0.1 ±3% ±0.4knots
    Temperature ºC 0 to 50.0ºC 0.1 ±0.1ºC
    Temperature ºF 32.0 to 120.0ºF 0.1 ±2.0ºF
    Air  Flow Range Resolution Area
    CFM (CFM=t3/min) 0-999,900t3/min 0.001~100 0 -999.9 ft2
    CMM (CMM=m3/min) 0 -999,900m3/min 0.001~100 0 -999.9 m2

Açıklama

  • Specifications (Manometer):



    Accuracy ±0.3%FSO
    Repeatability ±0.2% (Max.+/ -0.5% FSO)
    Linearity/Hysteresis ±0.29% FSO
    Pressure  Range ±2psi (±55.40 inH2O)
      Units Range/Resolution
    Units and Resolution psi 2.000/0.001
    mbar 137.8/0.1
    kPa 13.78/0.01
    inHg 4.072/0.001
    mmHg 103.4/0.1



    Specifications (Flow)



    Air  Velocity Range Resolution Accuracy
    m/s(meter per second) 0.40~30.00 0.01 ±3% ± 0.20m/s
    ft/min(feet per minute) 80~5900 1 ±3% ± 40ft/min
    km/h(kilometers per hour) 1.4~108.0 0.1 ±3% ± 0.8km/h
    MPH(miles per hour) 0.9~67.0 0.1 ±3% ± 0.4MPH
    Knots(nautical miles per hour) 0.8~58.0 0.1 ±3% ±0.4knots
    Temperature ºC 0 to 50.0ºC 0.1 ±0.1ºC
    Temperature ºF 32.0 to 120.0ºF 0.1 ±2.0ºF
    Air  Flow Range Resolution Area
    CFM (CFM=t3/min) 0-999,900t3/min 0.001~100 0 -999.9 ft2
    CMM (CMM=m3/min) 0 -999,900m3/min 0.001~100 0 -999.9 m2
