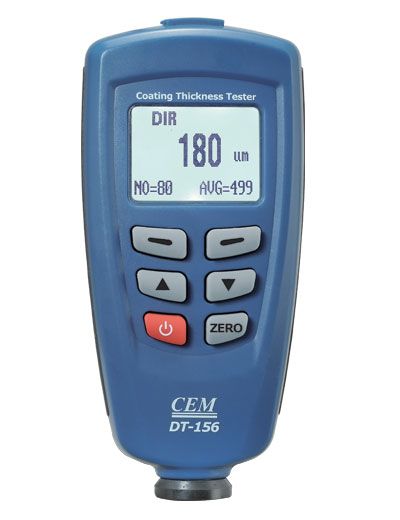

CEM DT156 Kaplama Kalınlığı Ölçer
CEM DT156 Kaplama Kalınlığı Ölçer
-
Specifications:
| Sensor probe |
F |
N |
| Working principle |
magnetic induction |
Eddy current principle |
| Measuring range |
0~1250um |
0~1250um |
| Guaranteed tolerance (of reading) |
(+/- 3%+1)um |
(+/- 3%+1.5)um |
| Low range Precision |
0.1um |
0.1um |
| Minimum curvature radius |
1.5mm |
3mm |
| Diameter of Minimum area |
3mm |
5mm |
| Basic critical thickness |
0.5mm |
0.3mm |
| Size(HxWxD) |
113.5mm x 54mm x 27mm |
| Weight |
110g |
|
Açıklama
-
Specifications:
| Sensor probe |
F |
N |
| Working principle |
magnetic induction |
Eddy current principle |
| Measuring range |
0~1250um |
0~1250um |
| Guaranteed tolerance (of reading) |
(+/- 3%+1)um |
(+/- 3%+1.5)um |
| Low range Precision |
0.1um |
0.1um |
| Minimum curvature radius |
1.5mm |
3mm |
| Diameter of Minimum area |
3mm |
5mm |
| Basic critical thickness |
0.5mm |
0.3mm |
| Size(HxWxD) |
113.5mm x 54mm x 27mm |
| Weight |
110g |
|
